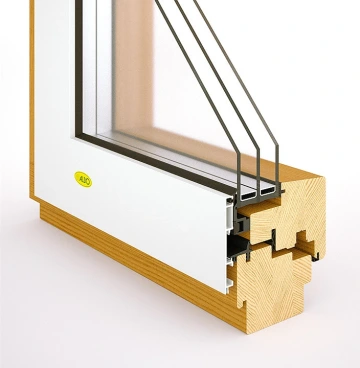

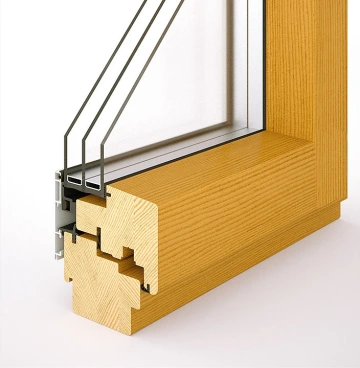

EURO profile made of multi-layer glued prism on the exterior side with aluminium cladding, thicker profile guaranteeing better thermal insulation and strength properties.

Basic thickness of the window profile

• Total window thickness 86 mm - of which the wooden profile is 68 mm

• triple glazing Ug=0,5 W.m-2K-1- Uw=0,72 W.m-2K-1

Other profile variants

• total window thickness 96 mm - of which wooden profile 78 mm

• total window thickness 110 mm - of which wooden profile 92 mm*
  *heat transfer coefficient of the frame itself - Uf =0.85 W^.m-2K-1

Heat transfer coefficient

_Ug=0,5 W.^m-2K-1

Heat transfer coefficient

_Uw=0,72 W.^m-2K-1

Soundproofing properties

_Rw=35 dB

Material

• Stable multi-layer glued prism on the exterior side with aluminium cladding

Seals

• full-circuit centre seal between frame and sash, additional noise seal on sash

Fittings

• branded all-round fittings, four-position safety window handle

Glazing

• triple glazing with double soft-coated layer of composition 4-18-4-18-4 - filled with argon

• interglass frame - stainless steel / swisspacer - fibreglass
  heat transfer coefficient_Ug=0,5 W.^m-2K-1

Surface treatment

• exterior: baked lacquer - RAL colour range, wood imitation, metallic shades

• Interior: four-layer coating system

Additional equipment

• insulating glass with HEAT MIRROR spheres - heat transfer coefficient_Ug=0,78-0,56 W.^m-2K-1

• safety triple glazing VSG, ESG

• noise-insulating triple glazing

• reflective insulating triple glazing

• ornamental insulating triple glazing

• special insulating triple glazing

ALBO windows are guaranteed for 60 months, both for the functionality of the windows and their surface finish.
