Lifting sliding walls / HS portal
Lift-and-slide walls offer a comfortable solution for access to the terrace with the possibility of retracting the large sash. The term HS portal is also used for lift-and-slide walls. Suitable for wheelchair accessible living with convenient and easy operation without physically demanding lifting.
Benefits
new sliding fitting system
comfortable and easy to operate without physically demanding lifting
better security of lift-and-slide doors or windows
wheelchair-accessible living - the possibility of being designed as a wheelchair access solution
new design - does not obstruct the space
movable sash can be slid out of the circulation in relation to the fixed sash
tightness of individual sashes
three-position handle control - unsealing of the running rail - ventilation
micro-ventilation position - operated by crank - sash remains in closed position
possibility of a larger version of one sash
single leaf / double leaf - sliding / multi-leaf walls
aluminium bottom profile with interrupted thermal bridge
Single leaf load capacity 300 kg, can be adjusted to single leaf load capacity up to 500 kg
paired ventilation of sliding sash
the sliding sash can be equipped with an electric drive

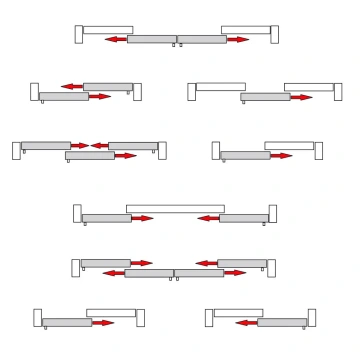

Solution options for lift-and-slide walls

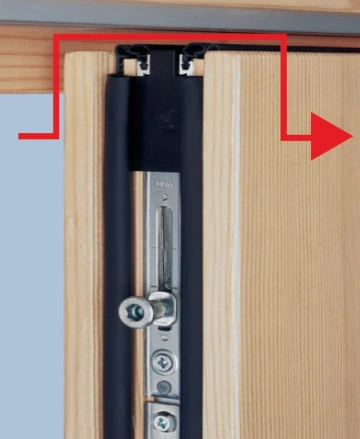

Protected ventilation
