Euro wooden windows - EURO IV78 profile - 78 mm thick profile guaranteeing better thermal insulation and strength properties - modern design with rounded outer and inner edges guarantees high durability of the surface treatment in the most stressed areas - previously sharp edges.

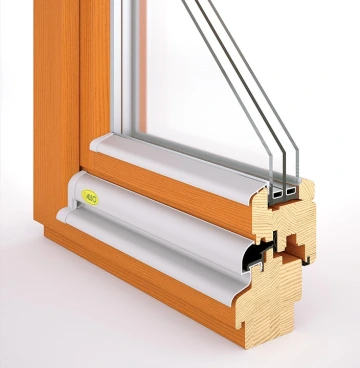

Profile of EURO IV78

78 mm

Heat transfer coefficient of the whole window

_Uw=0,89 W.^m-2K-1

Heat transfer coefficient through the frame

_Uf=0,94 W.^m-2K-1

Soundproofing properties

_Rw=35 dB

Material

• Stable three-layer glued prism guarantees absolute dimensional stability

Seals

• full-circuit centre seal between frame and sash, additional noise seal on sash

Fitted glazing bar

• prevents the formation of a gap between the sash profile and the glazing bar, glazing groove depth 20 mm

Shackles

• DONAU THERMO

Fittings

• branded all-round fittings

• Four-position safety window handle

• 3 security points on single-hung windows

• 5 security points for double-hung windows

• safety lock against window sagging and incorrect handling

Glazing

• triple glazing with double soft-coated layer of 4-12-4-12-4 - filled with argon

• interglass frame - stainless steel / swisspacer (fiberglass)

• heat transfer coefficient_Ug=0,7 W.^m-2K-1

Surface treatment

• Four-layer coating system

Optional equipment options

• ^ALBO® EURO IV78 profile - profiled edges, rustic - exterior side

• fifth handle position - locking - minimum sash dimension - 820 mm, not possible to fit into aluminium balcony sill

• safety fittings - safety classes VK1, VK2, VK3

• special safety equipment with control and monitoring systems

• concealed fittings - fittings in the inner groove of the frame

• insulating glass with HEAT MIRROR foil heat transfer coefficient_Ug=0,78-0,56 W.^m-2K-1

• VSG safety double glazing

• noise-insulating double glazing, etc.

ALBO windows are guaranteed for 60 months, both for the functionality of the windows and their surface finish.
